Description

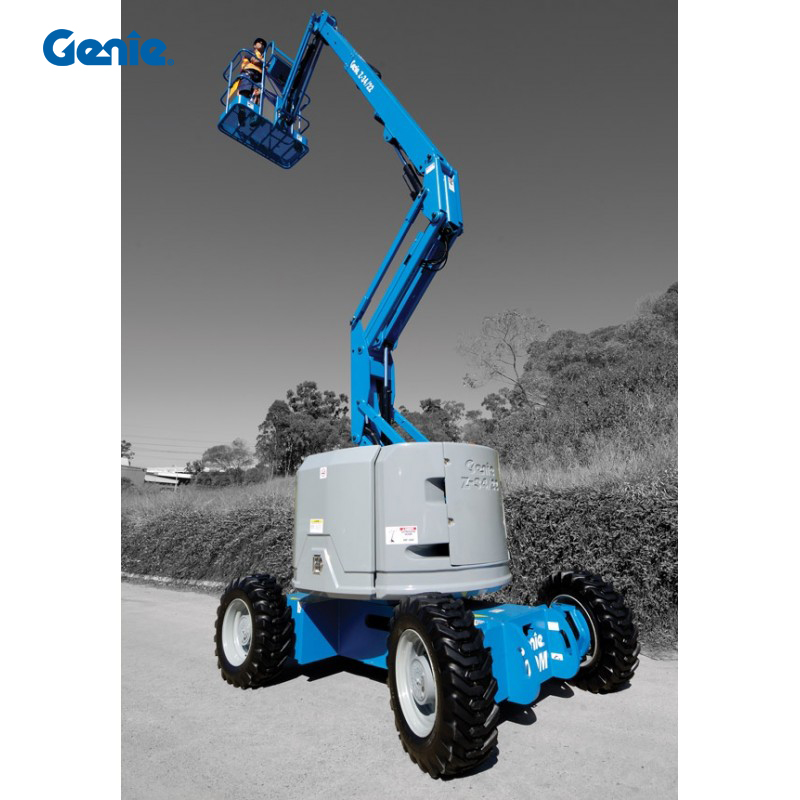

The Genie® Z®-34/22 N electric articulating boom lift offers quiet, emission-free operation in the most sensitive work environments. It’s a 48V DC machine with a diesel-powered generator acting as a 100 amp battery charger, making it ideal for indoor and outdoor applications.

FEATURES

• 4 ft (1.22 m) jib boom with 139° working range
• Self-leveling platform
• Hydraulic platform rotation
• Proportional joystick controls
• Thumb rocker steer
• Drive enable
• AC power cord to platform
• Horn
• Hour meter
• Tilt alarm
• Descent & travel alarms
• Zero tailswing
• 355° non-continuous turntable rotation
• Telematics ready connector
• Lift Guard™ Contact Alarm
• Dual parallelogram for vertical wall tracking

SPECIFICATIONS

• 40 ft 6 in (12.52 m) working height
• 22 ft 3 in (6.78 m) horizontal reach
• 15 ft 3 in (4.65 m) up and over clearance
• Up to 500 lbs (227 kg) lift capacity
